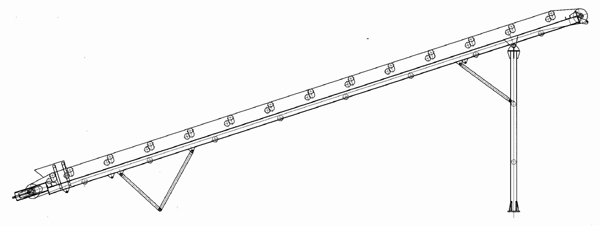

CONVEYOR

SPECIFICATION

The length of conveyor is made to suit customer°Įs requirement, however we have standard length of 6018 from outer edge of header to tail drum [pulley], so that it can fit in 20ft. container.

Load carrying rollers      114 dia. 3-roller 30 degree trough type

Return rollers                 114 dia. single flat type

CONVEYOR LIFT          at angle of 20degrees


MATERIAL TO BE CONVEYED    aggregate/ stones

BULK DENSITY OF MATERIAL    1500kg/cu.m. [varies]

MATERIAL SIZE                          generally 150--5 fines mm

MATERIAL TEMPERATURE         ambient°„C

°°

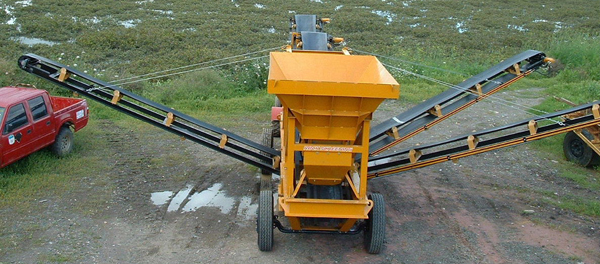

LAYOUT --- normally attached to the I beam frame of the mobile plant by quick detach arrangement and wire ropes, but can be provided with independent self-support stands with wheels, if required.

SITE CONDITIONS-- outdoors--quarry sites


CONVEYOR CAPACITY         75T/Hr. aprox. for 450 width

                                             140T/Hr. aprox. for 600 width


BELT SPEED                  0.7 to1.3m/sec.,

IDLER DIAMETER [i.e. enddrums]      300mm

HYDRAULIC DRIVE MOTOR 380 TO 550 Nm @ 50 TO 70 RPM

MOTOR DIRECTLY COUPLED TO  DRIVE DRUM [PULLEY/ HEAD ROLLER]

HYDRAULIC WORKING PRESSURE 1000PSI

°°
