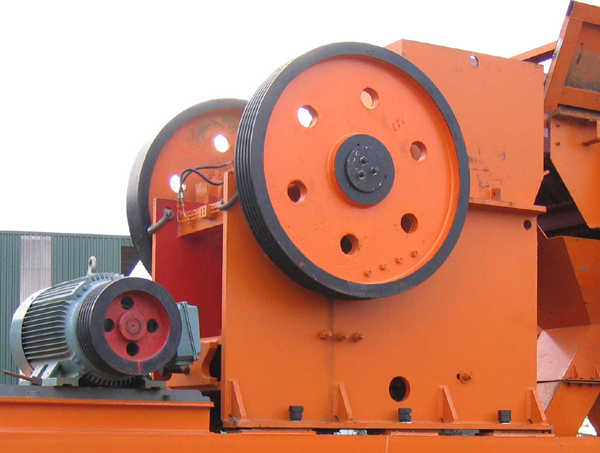

TASMAN JAW CRUSHER

The Tasman Jaw crusher is widely used for crushing ores or rocks in such relevant industries as mine., dressing, construction material, Chemical engineering with superior performance, operating ease, lower maintenance cost. The sizes of feeding ores or rocks in the crusher are smaller than the opening of the jaw crusher

*Crushing capacity will vary with varying field conditions, such as properties, shapes and sizes of feed material, charging method. natural conditions,  etc. Limestone can he easily be crushed in one compression. Hard, rounded material is difficult to crush and it naturally reduces the capacity of crusher. The capacity is also reduced by a big rock  blocking the inlet. Greater crushing capacity can be achieved from feeding various sizes other than uniform size rock.

When soil and sand are contained in the feed it also causes a decrease in crushing capacity. To optimize power consumption, refrain from overload with big rocks or ores. The capacity shown in specifications is based on dry rock having medium hardness and density of 1.6 ton/cu.m.

CONSTRUCTIONAL DETAILS

This crusher consists mainly of steel fabricated frame  [ not cast iron], with eccentric shaft of alloy steel.

All wearable parts are easily replaceable and can be available from us.

The stationary jaw plate is secured to the front-wall of the frame with the bolts and the cheek plates (3). The moving jaw  plate is held on to swing jaw with the wedge for easy replacement. When the bottom wear is considerable the moving jaw plate and stationary jaw plate may he reused after reversing its top and bottom.

It is provided with the toggle plate acts as a safety device, that is, as abnormal heavy loads, such as a lump of iron, is bitten into the crushing chamber, it will be break, so that other main parts are protected from damage.

Outlet dimension can he easily adjusted with hydraulic pump and jack by inserting shims suited to the desired products size between the toggle block and the rear-wall of the frame.
